Bug #14475

closed

MS RM

WDialog positioned aside widget is moved and wrongly sized on setMinimumSize

Bug #14475: WDialog positioned aside widget is moved and wrongly sized on setMinimumSize

Added by Michael Seibt 5 months ago. Updated 19 days ago.

Status:

Closed

Priority:

Normal

Assignee:

Romain Mardulyn

Target version:

4.14.2

Start date:

04/15/2026

Due date:

% Done:

Estimated time:

Description

Affected: WDialog::positionAt(WWidget*, Orientation) of Wt 4.13.0 (and most likely former versions)
WDialog::positionAt(WWidget*, Orientation) shows and positions the dialog.
Every setMinimumSize moves the dialog to some top-left position and often changes the size improperly (smaller than the specified minimum size).
Another call to WDialog::positionAt(WWidget*, Orientation) repairs it. But it causes flicker and the need to store the WWidget* and Orientation.
This happens regardless of whether the minimum size has actually changed or not.
The dialog did always fit to the viewport, i.e. this also not a reason for moving it.

Files

Download all files

main.cpp (10.9 KB) main.cpp		Michael Seibt, 04/16/2026 09:53 AM
clipboard-202608061150-6lvig.png (16.8 KB) clipboard-202608061150-6lvig.png		Michael Seibt, 08/06/2026 11:50 AM
clipboard-202608061151-vtpfe.png (6.28 KB) clipboard-202608061151-vtpfe.png		Michael Seibt, 08/06/2026 11:51 AM
clipboard-202608061152-ugiex.png (6.18 KB) clipboard-202608061152-ugiex.png		Michael Seibt, 08/06/2026 11:52 AM

MS Updated by Michael Seibt 5 months ago Actions
Copy link
#1

File main.cpp main.cpp added

STR:

run attached main.cpp
select a WTableView cell
press Space (invokes WDialog::positionAt(WWidget*, Orientation))

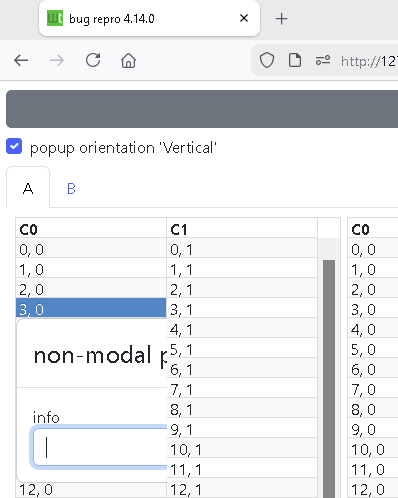

--> A WDialog pops up aside the cell.
push button "setMinimumSize of dialog"
--> The popup is moved to more or less weird top-left position in dependency of the WTableView.
